Denso WRX

  • Sale
  • $165.00

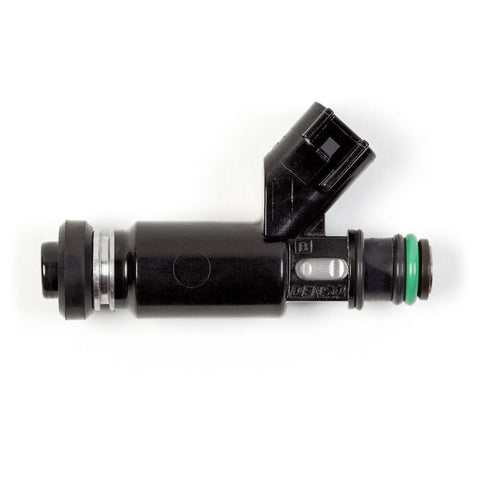

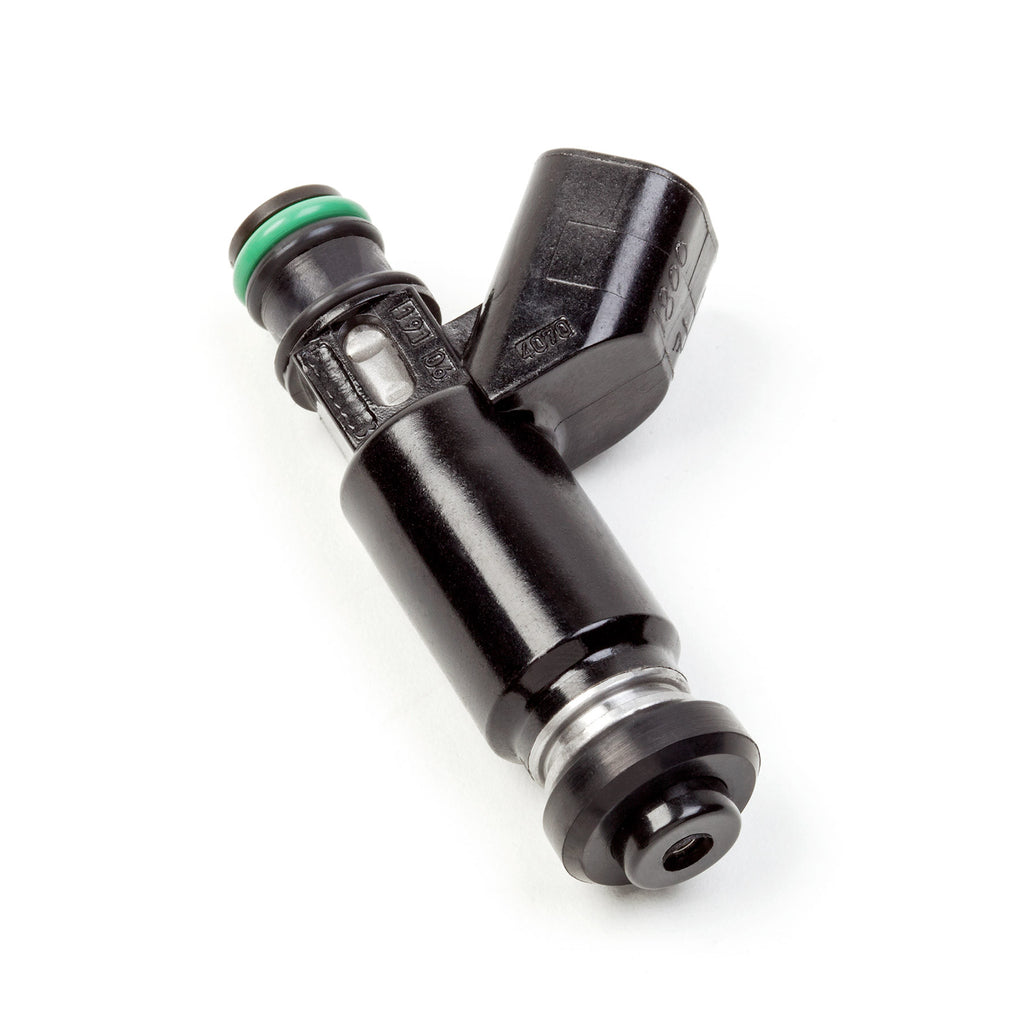

Denso E85, Asphalt Series Fuel Injectors


Top-Feed, Import Fit, Standard Length


Subaru WRX, STi


Racing & Off-Road Motorsport Use


Asphalt Series fuel injector data:

  • 100% stainless steel internal parts are corrosion resistant
  • Compatibility with all racing fuels including, ethanol, E85, MTBE, oxygenated fuels and methanol
  • Individual dynamic testing at multiple pulse-widths
  • Sets are Flow Balanced and Matched to within 1.5% (flow data report included)
  • Excellent spray pattern with complete fuel atomization
  • Linear performance for optimized idle and tuning
  • Technical assistance and tuning data available
  • 3-year, unlimited-miles warranty
  • Made in the U.S.A.



Fuel Pressure Range:

Min. 3 Bar (43.5 psi) – Max. 8 Bar (116.0 psi)

Flow Rates:

Nominal flow rates measured in cc/min @ 3.0 Bar (43.5 psi)

Minimum Pulse Width:

1.9 ms

Coil Impedance:

High Impedance, 12.5 Ohms

Fuel Compatibility:

All fuel types

Maximum Duty Cycle:

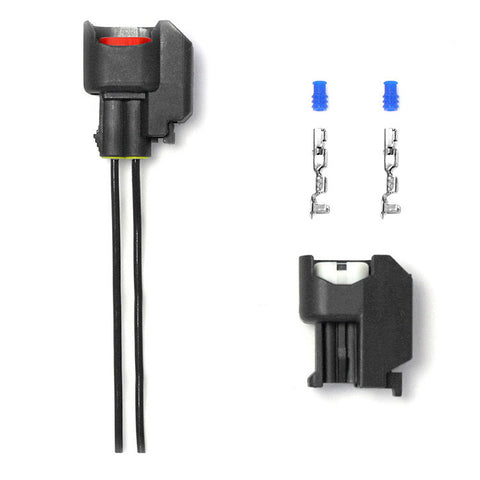

Electrical Connector Type:


Upper O-ring:

11mm, Viton Material

Lower Seal:

16mm, Viton Material
