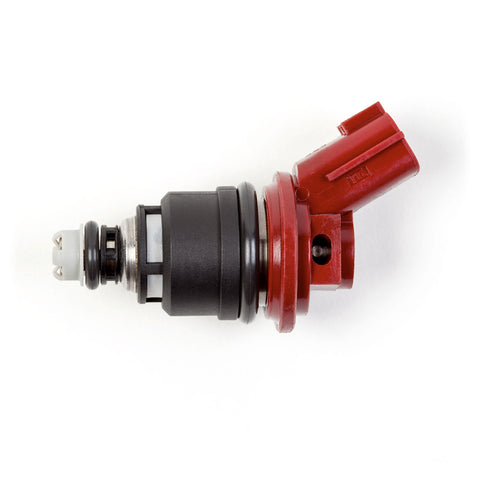

FiveO-Racing / JECS Side-Feed Fuel Injectors
|
Configuration: |
Side-Feed |
|
Application: |
Nissan, VG30DE, SR20DET, RB25DET, KA24DE |
|
Usage: |
Racing & Off-Road Motorsport Use |
EV14 fuel injector data:
- Stainless steel internal parts are compatible with all fuel types
- Individual dynamic testing at multiple pulse-widths
- Sets are Flow Balanced and Matched to within 1.5% (flow data report included)
- Linear performance throughout the pulse-width range for optimized idle and tuning
- Technical assistance and tuning data available
- 3-year, unlimited-miles warranty
- Made in Japan
- Direct Fit. Some older model years may require the Phase-1 to Phase-2 adapter kit.
Specs:
|
Fuel Pressure Range: |
Min. 3 Bar (43.5 psi) – Max. 7 Bar (101.5 psi) |
|
Flow Rates: |
Nominal flow rates measured in cc/min @ 3.0 Bar (43.5 psi) |
|
Minimum Pulse Width: |
1.2 ms |
|
Coil Impedance: |
High Impedance, 12.5 Ohms |
|
Fuel Compatibility: |
All fuel types |
|
Maximum Duty Cycle: |
95% |
|
Electrical Connector Type: |
Nissan |
|
Upper O-ring: |
Viton Material |
|
Lower O-ring: |
Viton Material |
